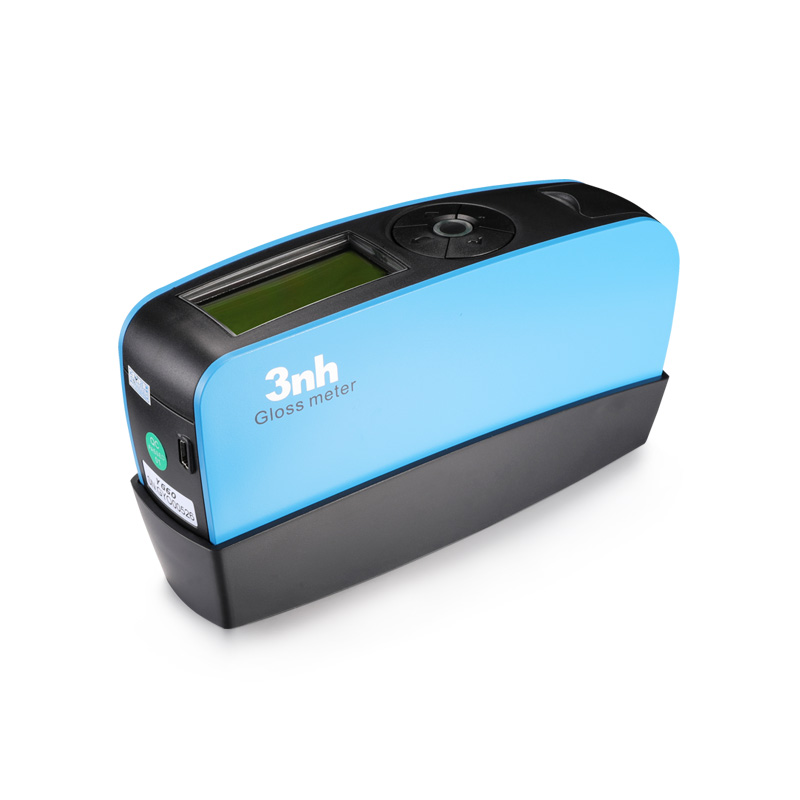

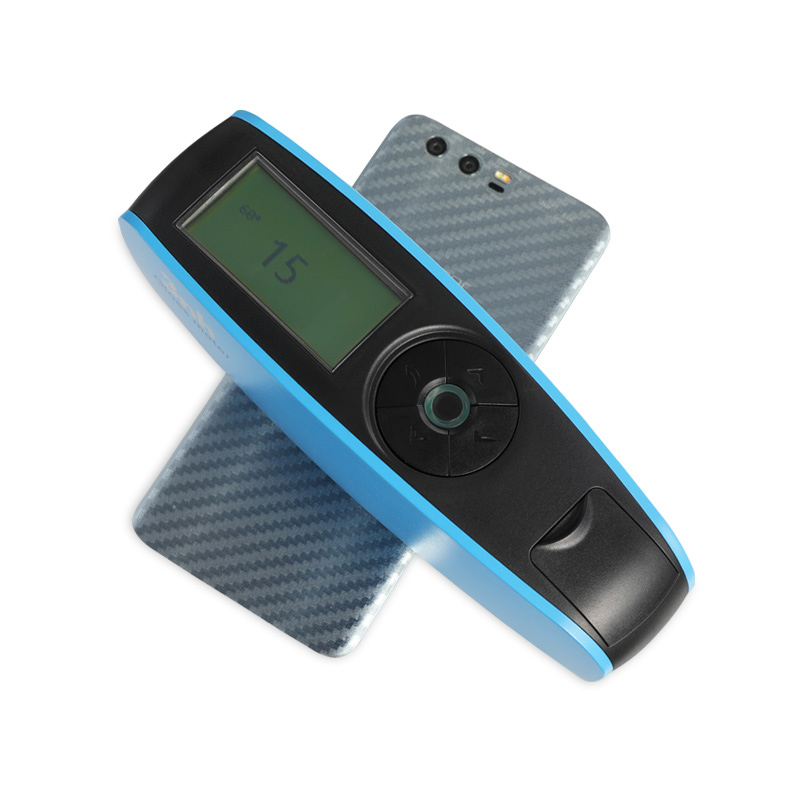

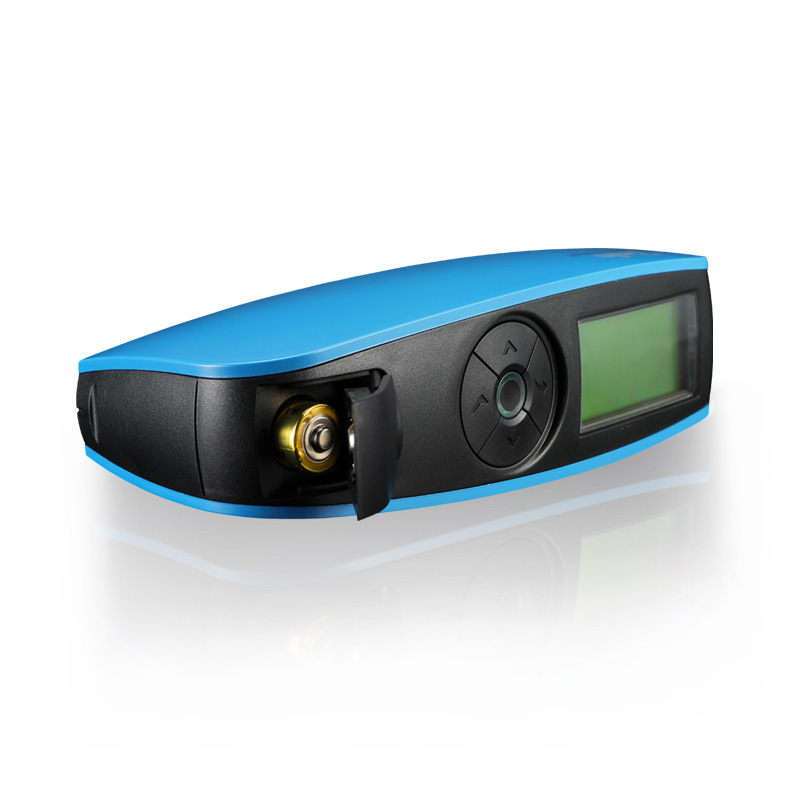

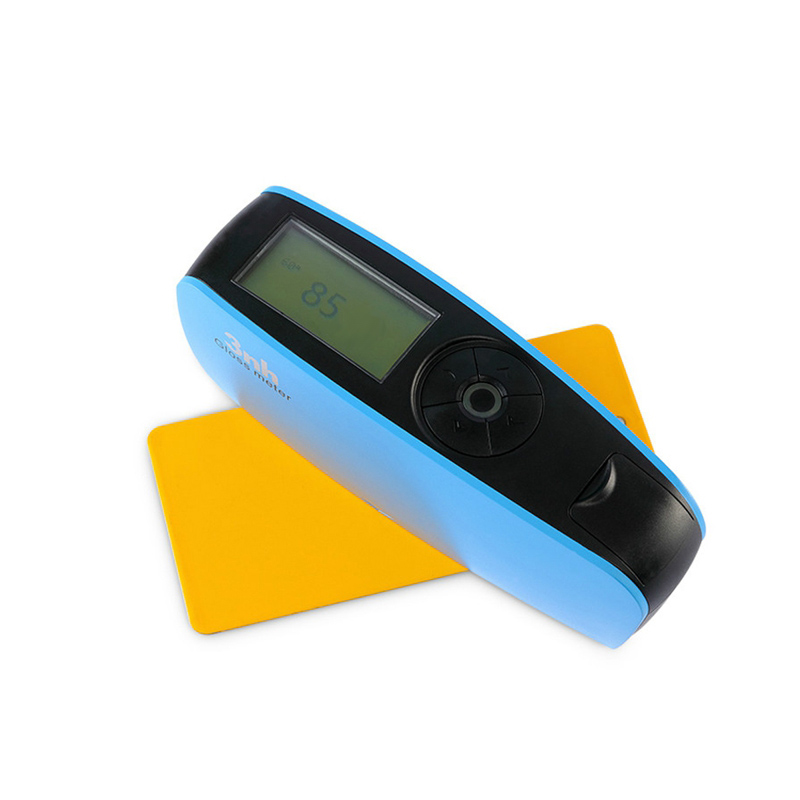

YG60S 60°Economic Gloss Meter

YG60S 60°Economic Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the second grade requirements of JJG696.


Features:


1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the second grade requirements of JJG696;
4. Auto Power-off within optional 30-120 seconds;
5. Comply to ISO2813, ASTM523, GB/T9754;

Application:

Widely used in the filed of paints, coating, plastics, ink, rubber, printing, paper, glass, handware, ceramic, marble etc.

Specifications:

Model	YG60S 60°Economic Gloss Meter
Measuring Angle	60°
Measuring Area	60°: 0-200GU
Division Value	1GU
Measuring Modes	Basic mode
Measuring Time	0.5S
Repeatability	0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU
Accurate	Conform with JJG696 second grade requirements of gloss meter
Auto Power-off Time	30s
Long-time Calibration	/
Language	Chinese & English
Storage	/
Display	2.3 inch white and black screen
Size	160*52*84mm
Weight	About 300g
Power Supply	1pc dry-cell battery(can measure 10000 times) or use USB Charge
Interface	USB
PC Software	/
Operation Temperature Range	0-40℃（32-104° F）
Storage Temperature Range	-20-50℃（-4-122° F）
Humidity Range	< 85% RH, without condensation
Standard Accessories	User manual, calibration plate
Optional Accessories	Miniature printer
Notification: the technical parameter is only for reference
